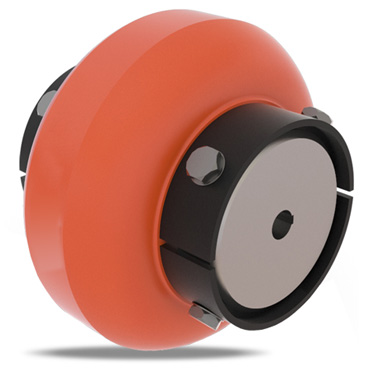

MAX DYNAMIC COUPLINGS

Inventory:

All Max Dynamic Couplings are in stock in our Cleveland, OH facility.

The unique halved flex element and reversible hubs reduce inventory and assembly time. Max Dynamic Couplings are non-lubricated, material-flexing couplings constructed of a specially formulated polyurethane material designed for maximum durability, strength and fatigue resistance.
The polyurethane material bonded to metal eliminates assembly and slippage problems that often occur with mechanically clamped designs.

Due to their simple structure, the element can be easily replaced without moving the drive (or motor) or driven equipment. Some misalignment of components in certain system is unavoidable. This coupling provides high misalignment capacity and low reactionary forces due to misalignment. The torsionally soft flex element cushions shock loads and vibration, which in turn extends equipment life.



Capabilities:
Max Dynamic Couplings can be produced up to size 120 which has a max bore of 7.48” and is rated for 170,106 lbs-in torque.

Click Here to Download the Max Dynamic Coupling Brochure

Max Dynamic & Field Coupling Types Available

KD Type
KDS Type (Spacer)
KF Type
KFS Type (Spacer)
DOWNLOAD COMPLETE DETAILS ON ALL COUPLINGS
Download
